Incudrive 90

Roller bottle incubator for rolling up to 90 cell culture roller bottles

  • selfcontained incubator/roller for 90 bottles
  • energy savings
  • mobile, built on castors
  • limits cross-contamination
  • warm-up period max. 2 hours
  • CO2-version (optional)

Roller bottle incubator for 90 bottles for the production of e.g. vaccines using adherent cell cultures.

Consisting of an incubator and a drive mechanism for rolling up to 90 cell culture bottles with a diameter of between 100 and 120 mm and 270 mm length, on 9 levels, of 5 bottles side by side in two rows. The rotational speed of a bottle with diameter 120 mm is continuously adjustable from 0.1 to 2 rpm.

Heating of only the exactly needed space for the cultivation of the seed cultures and the production cultures results in considerable energy savings compared to large warm rooms. Temperature range is +5°C above room temperature to +50°C, continuously adjustable. With protection against over-heating.

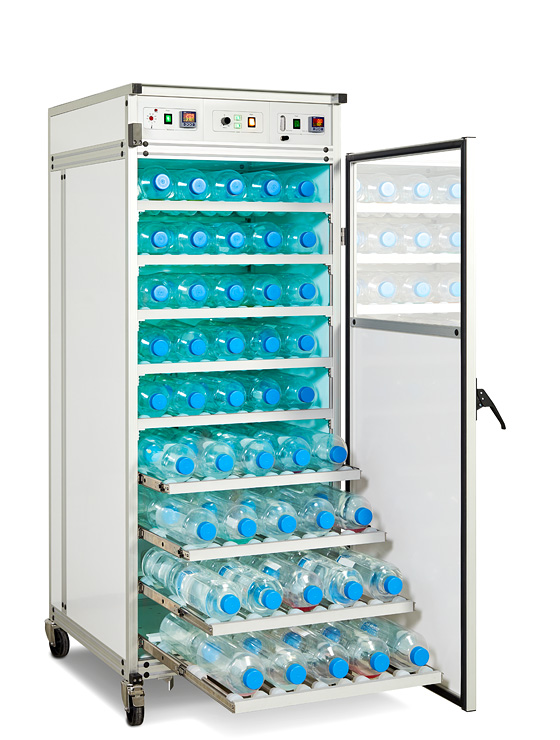

(INCUDRIVE 90Flex)

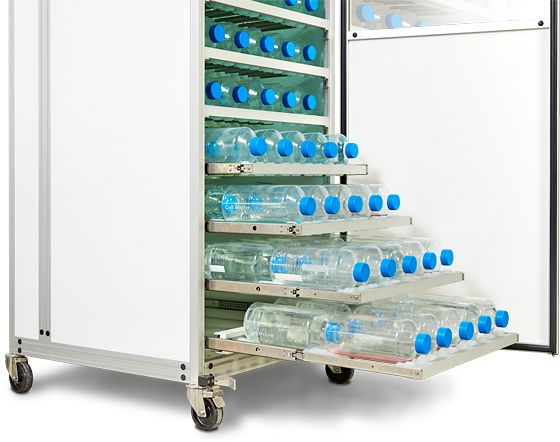

(INCUDRIVE 90Flex)

Production

INCUDRIVE 90 comes with castors and is therefore mobile. Production capacity can be adapted by purchasing additional INCUDRIVE 90 devices as needed. Methods, which are generated inside one INCUDRIVE 90 can be scaled up to the number of devices, which are required for the production. Improved safety during production – the risk of problems during cultivation is limited to just the one incubator in question.

  • There is an interface available for temperature monitoring (quality control).
  • Optionally available for CO2-operation 0-10 %. Consumption approx. 2 kg per day.
  • Different models of INCUDRIVE 90 are available, see ordering information.

The Bottle-Lifter (optional) allows for all 90 bottles to be loaded or removed simultaneously in only one working step within seconds. The Bottle-Lifter is mobile and sterilizable. It also serves to remove bottles from the incubator and to transport them to a separate room for harvesting, thereby minimizing the risk of crosscontamination.

Technical Data

Roller speed: 0.1 – 2 rpm
Temperature stability: < +/- 0,7°C
Working temperature internal: +5 °C max. + 50°C above room temperature
Dimensions outer (w x h x d): 800 x 1,950 x 950 mm
Tube/Vessel diameter: 55–130 mm
Power: 230 V, 50–60 Hz, 1,300 W or 115 V, 50–60 Hz, 1,300 W
Weight: approx. 260 kg

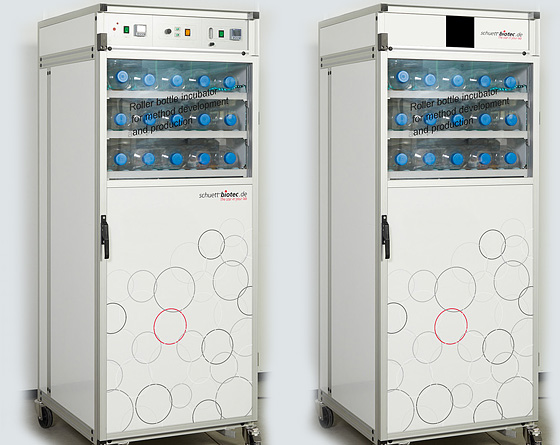

Varianten

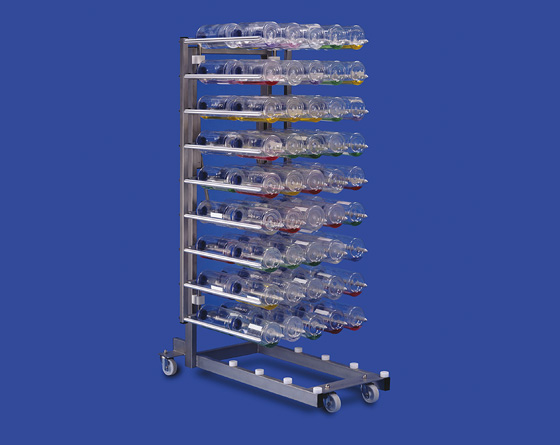

Bottle-Lifter

Ordering information

Description Cat.-No.
INCUDRIVE 90
Roller Bottle Incubator, 230 V
for rolling 90 cell culture bottles with Ø 120 mm, 270 mm length (2 L volume) or 45 cell culture bottles with Ø 120 mm, 520 mm length (5 L volume), with 9 fixed-mounted roller inserts (level 1-9), with circulating air temperature control system, for production of monolayer cell cultures		 3.068 001
INCUDRIVE 90 CO2
CO2-Roller Bottle Incubator, 230 V
for rolling 90 cell culture bottles with Ø 120 mm, 270 mm length (2 L volume) or 45 cell culture bottles with Ø 120 mm, 520 mm length (5 L volume), with 9 fixed-mounted roller inserts (level 1-9), with circulating air temperature control system, for production of monolayer cell cultures using with CO2 (0-10 %)		 3.069 001
INCUDRIVE 90Flex
Roller Bottle Incubator, 230 V
for rolling 50 cell culture bottles with Ø 120 mm, 270 mm length (2 L volume) or 25 cell culture bottles with Ø 120 mm, 520 mm length (5 L volume), with 5 fixed-mounted roller inserts (level 1-5), with circulating air temperature control system, for production of monolayer cell cultures.

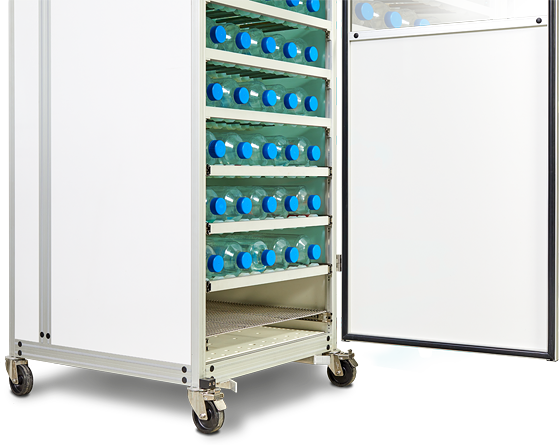

Can be fitted with up to 4 additional roller insert (level 6-9) in the lower free/flexible area or with upt to 4 wire shelves/shelves (see optional accessories).
For the flexible area the number of inserted levelst o be used in freely selectable.		 3.068 101
INCUDRIVE 90 CO2
CO2-Roller Bottle Incubator, 230 V
for rolling 50 cell culture bottles with Ø 120 mm, 270 mm length (2 L volume) or 25 cell culture bottles with Ø 120 mm, 520 mm length (5 L volume), with 5 fixed-mounted roller inserts (level 1-5), with circulating air temperature control system, for production of monolayer cell cultures using with CO2 (0-10 %).
Can be fitted with up to 4 additional roller insert (level 6-9) in the lower free/flexible area or with upt to 4 wire shelves/shelves (see optional accessories).
For the flexible area the number of inserted levelst o be used in freely selectable.		 3.069 101
INCUDRIVE 90Touch
Roller Bottle Incubator, 230 V
for rolling 90 cell culture bottles with Ø 120 mm, 270 mm length (2 L volume) or 45 cell culture bottles with Ø 120 mm, 520 mm length (5 L volume), with 9 fixed-mounted roller inserts (level 1-9), with circulating air temperature control system, as well as Touchscreen (Screen recorder) for production of monolayer cell cultures.		 3.068 201
INCUDRIVE 90Touch CO2
CO2-Roller Bottle Incubator, 230 V
for rolling 90 cell culture bottles with Ø 120 mm, 270 mm length (2 L volume) or 45 cell culture bottles with Ø 120 mm, 520 mm length (5 L volume), with 9 fixed-mounted roller inserts (level 1-9), with circulating air temperature control system, as well as Touchscreen (Screen recorder) for production of monolayer cell cultures using with CO2 (0-10 %).		 3.069 201
INCUDRIVE 90Flex Touch
Roller Bottle Incubator, 230 V
for rolling 50 cell culture bottles with Ø 120 mm, 270 mm length (2 L volume) or 25 cell culture bottles with Ø 120 mm, 520 mm length (5 L volume), with 5 fixed-mounted roller inserts (level 1-5), with circulating air temperature control system, as well as Touchscreen (Screen recorder) for production of monolayer cell cultures.
Can be fitted with up to 4 additional roller insert (level 6-9) in the lower free/flexible area or with upt to 4 wire shelves/shelves (see optional accessories).
For the flexible area the number of inserted levelst o be used in freely selectable.		 3.068 301
INCUDRIVE 90Flex Touch CO2
CO2-Roller Bottle Incubator, 230 V
for rolling 50 cell culture bottles with Ø 120 mm, 270 mm length (2 L volume) or 25 cell culture bottles with Ø 120 mm, 520 mm length (5 L volume), with 5 fixed-mounted roller inserts (level 1-5), with circulating air temperature control system, as well as Touchscreen (Screen recorder) for production of monolayer cell cultures using with CO2 (0-10 %).
Can be fitted with up to 4 additional roller insert (level 6-9) in the lower free/flexible area or with upt to 4 wire shelves/shelves (see optional accessories).
For the flexible area the number of inserted levelst o be used in freely selectable.		 3.069 301
Optional accessories for INCUDRIVE 90Flex-models (max. 4 per INCUDRIVE 90)
Roller Insert, removable (einzeln, zusätzlich)		 3.068 150
Wire shelve/shelve, stainless steel (single, additional) 3.068 700
Optional accessories for all INCUDRIVE 90-models
Bottle-Lifter, for loading or removing all bottles simultaneously		 3.068 011



Optionally we offer the following options for all INCUDRIVE 90-models:

  • Various alarm systems
  • Battery Back-up up to 72 hours
  • Qualification documents (IQ/OQ)
